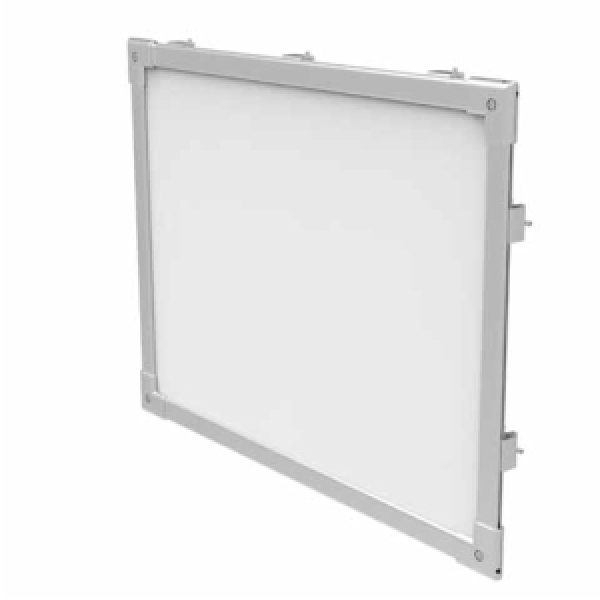

1 x clamping frame OUTDOOR, incl. Wall mounting
External size: 25090 x 3090 mm each BXH
Frame inside (visible dimension): 25000 x 3000 mm, no banner measure!
Blanks: 24980 x 2980 mm
-------------------------------------------
Frame top edge max. 12 m above ground
System connection to existing concrete façade / masonry
Consisting of:
Rail 2-channel FLAT 55,928 m /56.0460.31
Anodised aluminum mm
for piping Ø 7-10 mm
Kedereinlage for hollow seams 9 Stg. /32.0960.43
Plastic solid material
Ø 8 mm L = 6000 mm OUTDOOR
Corner connector tensioned, 4 pcs, /36.0444.30
aluminum
for rail 2-channel FLAT
Rail connector 150, 14 pcs, /36.1215.01
galvanized steel
for the SIGN-WARE® welt channel
Suspension UP / DOWN, 72 pcs, /36.4560.30
Anodized aluminum
Clamping distance up to 2 cm
